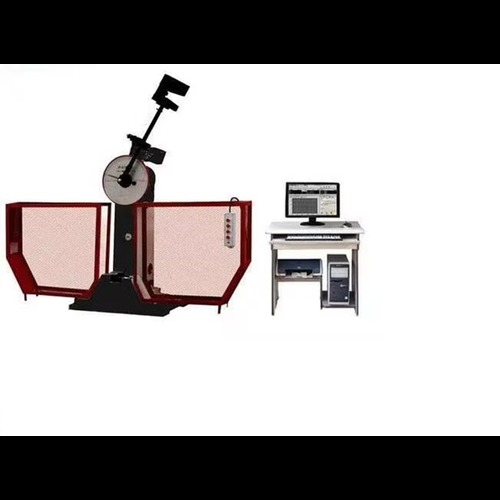

Izod & Charpy Impact Testing Machine
95000.0 INR/Piece
Product Details:
- Application Metal and material impact strength testing
- Number of Specimens Single specimen per test
- Frequency 50 Hz
- Equipment Type Impact Testing Machine
- Max Height Approx. 1400 mm
- Port Size Standard computer USB port
- Response Time Instantaneous (mechanical release)
- Click to View more
X
Izod & Charpy Impact Testing Machine Price And Quantity
- 1 Piece
- 95000.0 INR/Piece
Izod & Charpy Impact Testing Machine Product Specifications
- Metal and material impact strength testing
- Manual/Automatic
- Single specimen per test
- Impact Testing Machine
- 50 Hz
- Approx. 1400 mm
- Floor mounted
- Direct energy indication, Safety guard, Robust frame, Data connectivity
- Semi-automatic
- 220 V AC, 50 Hz
- Standard computer USB port
- Instantaneous (mechanical release)
- 220 V AC
- 1 Joule
- 0.5% of indicated value
- Laboratory/Industrial
- Not Applicable (pendulum based)
- 0-300 Joules (Charpy), 0-170 Joules (Izod)
- PC USB, Printer port
- Analog/Digital with PC Interface
- 300 Joules (Charpy), 170 Joules (Izod)
- 5.5 m/s to 5.8 m/s
- Standard 10 mm
- 55 mm x 10 mm x 10 mm (Charpy); 75 mm x 10 mm x 10 mm (Izod)
- Up to 85% RH, non-condensing
- Approx. 450 kg
- 0 to 300 Joule
- 10C to 40C
- High Carbon Steel
- Motorized/manual
- Enclosure shield, Emergency stop
- 150 (Release Angle)
- Real-time curve via software
- Vise Clamp (Izod), Anvil Support (Charpy)
- Standard weights/blocks
- Wooden crate
- Powder-coated body
- Windows OS
- Available
Izod & Charpy Impact Testing Machine Trade Information
- 5-7 Days
Product Description
The machine operates on the pendulum principle. A heavy, precision-engineered hammer is released from a fixed height (potential energy) to strike the test specimen. By measuring how high the pendulum swings after fracturing the sample, the machine calculates the amount of energy absorbed by the material. Dual-fixture machines easily swap between Izod configuration (where a vertical cantilever beam faces the striker) and Charpy configuration (where a horizontal beam is supported at both ends and struck in the middle).Versatile Testing Applications
This impact testing machine is designed for both Izod and Charpy methods, providing flexibility to test a wide range of metallic materials. With a test range of 0-170 Joules (Izod) and 0-300 Joules (Charpy), it is suitable for various industrial and research settings that require accurate impact resistance evaluation.
Advanced Safety and Control
Safety is prioritized with an enclosure shield and emergency stop system. Users may opt for manual or automatic control modes, ensuring both operational convenience and robust protection. The machine supports motorized or manual pendulum lift to facilitate versatile laboratory workflows.
Reliable Data and Easy Integration
Real-time test data is provided via intuitive software with a Windows-compatible PC interface and printer support. Direct energy indication, robust frame, and a resolution of 1 Joule ensure reliability, while the setup is easy to integrate into existing laboratory information systems.
FAQ's of Izod & Charpy Impact Testing Machine:
Q: How do I calibrate the Izod & Charpy Impact Testing Machine?
A: Calibration is performed using certified standard weights or blocks, ensuring measurement accuracy within 0.5% of the indicated value. Follow the manufacturer's guidelines included with the machine for proper calibration steps.Q: What safety features are included with the machine?
A: The machine is equipped with an enclosure shield to contain debris during testing and an emergency stop button for immediate shutdown, prioritizing user safety during operation.Q: When should I use the Izod versus the Charpy testing method?
A: Use the Izod method for evaluating material impact resistance with a vise clamp grip, or select the Charpy method with an anvil support for specimens placed horizontally. Each method follows relevant international standards for accurate material assessment.Q: Where can I access the test results and data output?
A: Test results are displayed in real time via the machine's software interface on Windows-based computers. Data can also be exported through a PC USB port or printer, allowing easy documentation and analysis.Q: What is the process for conducting a test?
A: After securely mounting a single specimen in the appropriate grip, set the pendulum to the 150 release angle. Initiate the test using manual or automatic controls. The machine records the absorbed energy instantly via the analog/digital display, with real-time data output to PC.Q: What benefits does this impact testing machine provide?
A: The machine offers fast, accurate, and reliable impact resistance testing for metals, with a robust design, advanced safety, intuitive data management, and wide application in both laboratory and industrial environments.Tell us about your requirement
